Is the ocean carbon sink sinking?

Filed under: — david @ 1 November 2007 - (Español)

The past few weeks and years have seen a bushel of papers finding that the natural world, in particular perhaps the ocean, is getting fed up with absorbing our CO2. There are uncertainties and caveats associated with each study, but taken as a whole, they provide convincing evidence that the hypothesized carbon cycle positive feedback has begun.

Of the new carbon released to the atmosphere from fossil fuel combustion and deforestation, some remains in the atmosphere, while some is taken up into the land biosphere (in places other than those which are being cut) and into the ocean. The natural uptake has been taking up more than half of the carbon emission. If changing climate were to cause the natural world to slow down its carbon uptake, or even begin to release carbon, that would exacerbate the climate forcing from fossil fuels: a positive feedback.

The ocean has a tendency to take up more carbon as the CO2 concentration in the air rises, because of Henry’s Law, which states that in equilibrium, more in the air means more dissolved in the water. Stratification of the waters in the ocean, due to warming at the surface for example, tends to oppose CO2 invasion, by slowing the rate of replenishing surface waters by deep waters which haven’t taken up fossil fuel CO2 yet.

The Southern Ocean is an important avenue of carbon invasion into the ocean, because the deep ocean outcrops here. Le Quere et al. [2007] diagnosed the uptake of CO2 into the Southern Ocean using atmospheric CO2 concentration data from a dozen or so sites in the Southern hemisphere. They find that the Southern Ocean has begun to release carbon since about 1990, in contrast to the model predictions that Southern Ocean carbon uptake should be increasing because of the Henry’s Law thing. We have to keep in mind that it is a tricky business to invert the atmospheric CO2 concentration to get sources and sinks. The history of this type of study tells us to wait for independent replication before taking this result to the bank.

Le Quere et al propose that the sluggish Southern Ocean CO2 uptake could be due to a windier Southern Ocean. Here the literature gets complicated. The deep ocean contains high concentrations of CO2, the product of organic carbon degradation (think exhaling fish). The effect of the winds is to open a ventilation channel between the atmosphere and the deep ocean. Stratification, especially some decades from now, would tend to shut down this ventilation channel. The ventilation channel could let the deep ocean carbon out, or it could let atmospheric carbon in, especially in a few decades as the CO2 concentration gets ever higher (Henry’s Law again). I guess it’s fair to say that models are not decisive in their assessment about which of these two factors should be dominating at present. The atmospheric inversion method, once it passes the test of independent replication, would trump model predictions of what ought to be happening, in my book.

A decrease in ocean uptake is more clearly documented in the North Atlantic by Schuster and Watson [2007]. They show surface ocean CO2 measurements from ships of opportunity from the period 1994-1995, and from 2002-2005. Their surface ocean chemistry data is expressed in terms of partial pressure of CO2 that would be in equilibrium with the water. If the pCO2 of the air is higher than the calculated pCO2 of the water for example, then CO2 will be dissolving into the water.

The pCO2 of the air rose by about 15 microatmospheres in that decade. The strongest Henry’s Law scenario would be for the ocean pCO2 to remain constant through that time, so that the air/sea difference would increase by the 15 microatmospheres of the atmospheric rise. Instead what happened is that the pCO2 of the water rose twice as fast as the atmosphere did, by about 30 microatmospheres. The air-sea difference in pCO2 collapsed to zero in the high latitudes, meaning no CO2 uptake at all in a place where the CO2 uptake might be expected to be strongest.

One factor that might be changing the pressure of CO2 coming from the sea surface might be the warming surface waters, because CO2 becomes less soluble as the temperature rises. But that ain’t it, as it turns out. The surface ocean is warming in their data, except for the two most tropical regions, but the amount of warming can only explain a small fraction of the CO2 pressure change. The culprit is not in hand exactly, but is described as some change in ocean circulation, caused maybe by stratification or by the North Atlantic Oscillation, bringing a different crop of water to the surface. At any event, the decrease in ocean uptake in the North Atlantic is convincing. It’s real, all right.

Canadell et al [2007] claim to see the recent sluggishness of natural CO2 uptake in the rate of atmospheric CO2 rise relative to the total rate of CO2 release (from fossil fuels plus land use changes). They construct records of the atmospheric fraction of the total carbon release, and find that it has increased from 0.4 back in about 1960, to 0.45 today. Carbon cycle models (13 of them, from the SRES A2 scenario) also predict that the atmospheric fraction should increase, but not yet. For the time period from 1960 to 2000, the models predict that we would find the opposite of what is observed: a slight decrease in the atmospheric fraction, driven by increasing carbon uptake into the natural world. Positive feedbacks in the real-world carbon cycle seem to be kicking in faster than anticipated, Canadell et al conclude.

There is no real new information in the Canadell et al [2007] analysis on whether the sinking sink is in the ocean or on land. They use an ocean model to do this bookkeeping, but we have just seen how hard it is to model or even understand some of the observed changes in ocean uptake. In addition to the changing ocean sink, drought and heat wave conditions may change the uptake of carbon on land. The infamously hot summer of 2003 in Europe for example cut the rate of photosynthesis by 50%, dumping as much carbon into the air as had been taken up by that same area for the four previous years [Ciais et al., 2005].

The warming at the end of the last ice age was prompted by changes in Earth’s orbit around the sun, but it was greatly amplified by the rising CO2 concentration in the atmosphere. The orbits pushed on ice sheets, which pushed on climate. The climate changes triggered a strong positive carbon cycle feedback which is, yes, still poorly understood.

Now industrial activity is pushing on atmospheric CO2 directly. The question is when and how strongly the carbon cycle will push back.

—–

Canadell, J.G., C.L. Quere, M.R. Raupach, C.B. Field, E.T. Buitehuis, P. Ciais, T.J. Conway, N.P. Gillett, R.A. Houghton, and G. Marland, Contributions to accelerating atmospheric CO2 growth from economic activity, carbon intensity, and efficiency of natural sinks, Proc. Natl. Acad. Sci. USA, doi 10.1073, 2007.

Ciais, P., M. Reichstein, N. Viovy, A. Granier, J. Ogee, V. Allard, M. Aubinet, N. Buchmann, C. Bernhofer, A. Carrara, F. Chevallier, N. De Noblet, A.D. Friend, P. Friedlingstein, T. Grunwald, B. Heinesch, P. Keronen, A. Knohl, G. Krinner, D. Loustau, G. Manca, G. Matteucci, F. Miglietta, J.M. Ourcival, D. Papale, K. Pilegaard, S. Rambal, G. Seufert, J.F. Soussana, M.J. Sanz, E.D. Schulze, T. Vesala, and R. Valentini, Europe-wide reduction in primary productivity caused by the heat and drought in 2003, Nature, 437 (7058), 529-533, 2005.

Le Quere, C., C. Rodenbeck, E.T. Buitenhuis, T.J. Conway, R. Langenfelds, A. Gomez, C. Labuschagne, M. Ramonet, T. Nakazawa, N. Metzl, N. Gillett, and M. Heimann, Saturation of the Southern Ocean CO2 sink due to recent climate change, Science, 316 (5832), 1735-1738, 2007.

Schuster, U., and A.J. Watson, A variable and decreasing sink for atmospheric CO2 in the North Atlantic, J. Geophysical Res., in press, 2007.


680 Responses to “Is the ocean carbon sink sinking?”

  1. 551

    AK writes:

    [[Assuming 5.8 GHz, and equal sized broadcast antenna and rectenna, both would be 4-5 Kilometers across. (Longer in the east-west dimension if the satellite was at a high angle from zenith.) Transfer efficiency would probably be somewhere between 25% and 50%.]]

    Probably I’m missing something simple, but if the antenna and the rectenna are the same size, how do you keep the beam from spreading out? Doesn’t the inverse-square law apply?

  2. 552
    J.C.H. says:

    Joe Duck Says:
    13 November 2007 at 4:52 AM

    My take remains as above – the issue is not some absurdity like “AGW is on balance a good thing because we’ll have fewer dead people from the cold”, rather it is “alarmism is bad”. He’s reasonably suggesting that most media accounts, and even some scientists, focus almost exclusively and narrowly on events with a trivial AGW component (European heat wave, Lake Chad, Katrina) while excluding events and circumstances that do not support the idea that AGW peril is imminent and consequences will likely be catastrophic. …

    This is the article Lomborg mentions:

    “August 2003 was the warmest August on record in the northern hemisphere, but according to the projections of the Intergovernmental Panel on Climate Change (IPCC), even more extreme weather events lie ahead. By the end of the century, the world’s average temperature is projected to increase by 2.5-10.4 degrees Fahrenheit (1.4-5.8 degrees Celsius). As the mercury climbs, more frequent and more severe heat waves are in store. …” – http://www.earth-policy.org/Updates/Update29.htm

    AGW caused what heat wave?

  3. 553
    Hank Roberts says:

    Lomborg-errors excerpt:

    “… To say that all deaths in excess of 0.54/100,000 are deaths due to ‘cold’, is a misuse of statistics. This misuse becomes even worse when we are said to have the basic death rate only during the 40 days per year, whereas we are said to have excess deaths due to cold not just during winter, but during 287 days per year, that is during 79 % of the year. We get an awful lot of ‘excess deaths’ in that way. Most of these are deaths of elderly people that would have deceased anyway within about half a year.
    For each location and each temperature, the average daily mortality is taken from the death statistics. It is then believed – falsely, it seems – that even if climate warms, the death rate at each temperature will remain the same. So, if there will be fewer days with relatively low temperatures then the total mortality will be lower. This belief is not founded on any concrete knowledge….”

  4. 554
    J.S. McIntyre says:

    An interesting piece under the title “Fuzzy Math” in the current Discover mag, p.19; take with however many grains of salt you deem appropriate.
    ============

    For 115.400 BTU (the amount of energy in one gallon of gasoline), you pay:

    Gasoline: $2.86 (actually more, as we all understand, and about to rise another $0.20 according to this morning’s news.)

    *Solar – $14.44 (I’m assuming photovoltaic, though they didn’t distinguish.)

    Wind – $1.66

    Biofuel, B20 – $2.70

    *Nuclear – $3.75

    *Hydropower – $0.91

    Geothermal – $1.69

    *Natural Gas – $5.37

    Information based on national averages from the Energy Information Administration, the Office of Energy Efficiency and Renewable Energy, and the National Renewable Energy Laboratory, all offshoots of the Dept. of Energy. Power plants measure energy in kilowatt-hours (kWh), and one kWh is equivalent to 3,413 BTU, or about 3% of the energy in one gallon of gasoline.

    * – Based on California’s high average price-per-kilowatt hour, according to the California Energy Commission.

    =============

    Needless to say, it is obvious photovoltaic Solar has a long way to go. At the risk of sounding cavalier, I think with the inevitable factors of innovation and economy of scale will get us there.

  5. 555
    dhogaza says:

    Matt, the ivory-billed woodpecker is almost certainly extinct. There’s one *possible* documented sighting in the last 50 years. Even before the $10,000 reward mentioned by jbroon was offered, ornithologists had been looking hard for this species for decades. Not only here, but in Cuba.

    And finding nothing.

    It’s been years since that one documented possible sighting (an ambiguous out-of-focus video tape, and an audio recording of what might be an ivory-billed, but then again could be a pileated, woodpecker). That neck of the woods has been scoured. Nada. Nothing. This is a large, conspicuous, noisy bird that shouldn’t be that hard to find in breeding season.

    As jbroon says, even if a pair or two exist, that’s not a “rebound”.

    I do hope the example of the ivory-billed woodpecker makes clear to you the difficulty of documenting the extinction of a species.

    His first statement (”doomed to immediate or early extinction”) could be said to be true regardless. It’s a meaningless statement.

    I could say: “Your driving is horrible. You are doomed to a car crash next week, or at some point in the future.”

    Bad analogy. A better analogy is “You have incurable cancer. You have one to eight months to live”.

    Again why limit to habitat loss?

    Because reversing habitat loss is usually expensive.

    Google “saved from extinction” and you get another long list. Praried dog, whooping crane, grizzly bear, bald eagle, gray wolf, green sea turtle, key deer, florida panther, kirtland’s warbler. And on and on.

    Most of these aren’t “saved from extinction”, they remain on the endangered list (which means they are at risk of extinction in the very near term).

    Also the amount of money spent on these species is huge. That’s why I posed my questions the way I did.

    There’s no way we’re going to spend tens or hundreds of millions of dollars on each species at risk of extinction due to human causes. Even here in the US, there’s a huge backlog on the creation of recovery plans for species already on the threatened/endangered lists.

    But I do expect an answer that has some tie back to reality.

    Well, it’s clear that you and lomborg don’t know squat about the subject. E.O. Wilson’s one of the greatest biologists of the last two centuries. I’ll trust his work on this subject over your and lomborg’s handwaving any day of the week.

  6. 556
    J.S. McIntyre says:

    re 478 (again)

    “Discarding the 99% availability standard (actually higher than that) out of hand sounds like the true goal is simply to get us back to nature and near pioneering days (sans all the wood burning, of course!)”

    Came across the following regarding this perspective. (Note: this was written a decade before “Collapse”)

    =============

    There is a popular myth going around. It maintains that there is something particularly corrupt about Western civilization – as if it invented war, exploitation, oppression, and pollution all by itself. Certainly if this were so, the world’s problems might be solved by just returning to “older, better ways.” Many do cling to the fantasy that this or that non-Western culture had some patent or universal happiness.

    Alas, if only it were so easy.

    In his book “A Forrest Journey: From Mesopotamia to North America,” John Perlin shows how the vast Feryile plains and mountains of Greece, Turkey, and the Middle East were turned into hardscrabble ravines by ancient civilizations. The record of the pillage goes back thousands of years to the earliest known epic, The Tale of Gilgamesh, about a king who cut down primordial cedar forests to take lumber for his city-state of Uruk. Droughts and floods plagued the land soon afterward, but Gilgamesh, nor any of his contemporaries, ever saw the connection.

    Summerian civilization went on to seize Oak from Arabia, juniper from Syria, cedar from Anatolia. The rivers of the Near East filled with silt, clogging ports and irrigation canals. Dredging only exposed salty layers below, which eventually ruined whatever soil hadn’t already blown away. The result, over centuries, is a region we know well as a realm of blowing sands and bitter winds, but which was once called the “fertile crescent,” the land of milk and honey.

    We don’t need mystical conjectures about “cycles of history” to explain, for instance, the Fall of Rome. Perlin shows how the Roman Empire, the Aegean civilization of ancient Greece, imperial China, and so many other past cultures performed the same feat, ignorantly fouling their own nests, using up the land, poisoning the future for their own children. Ecological historians are at last starting to realize that this is simply the natural consequence whenever a people acquire more physical power than insight.

    While it is romantic to imagine that tribal peoples – either ancient or in today’s retreating rainforests – were at harmony with nature, living happy, egalitarian lives, current research shows this to be far from uniformly true, and more often just plain false. Despite a fervent desire to believe otherwise, evidence now reveals that members of nearly every “natural” society have committed depredations on their environment and on each other. The harm they did was limited mostly by low technology and modest numbers.

    The same goes for beating up on the human race as a whole. Oh, we have much to atone for, but the case isn’t strengthened by exaggerations that are just plain wrong. Stephen Jay Gould has condemned “…the romantic twaddle the common litany that `man alone kills for sport, but other animals [kill] only for food or in defense.’” Anyone who has watched a common housecat with a mouse – or stallions battling over dominance – knows that humans aren’t so destructive because of anything fundamentally wrong about human nature. It’s our POWER that amplifies the harm we do until it threatens the entire world.

    My purpose in saying this isn’t to insult other cultures or species. Rather, I am trying to argue that the problems we face are deep-seated, with a long history. The irony of these myths of the noble tribesman, or noble animal, is that they are most fervently held by pampered Westerners whose well-cushioned culture is the first ever to feel comfortable enough to promote a new tradition of self-criticism. And it is this very habit of criticism – even self-reproach – that makes ours the first human society with a chance to avoid the mistakes of our ancestors.

    Indeed, the race between our growing awareness and the momentum of our greed makes the next half-century the greatest dramatic interlude of all time…

    …Oh, surely, a good dose of guilt now and then can help motivate us to do better. But I see nothing useful coming out of looking backward for salvation of modeling ourselves after ancient tribes. WE are the generation – here and now – that must pick up a truly daunting burden, to tend and keep a planetary oasis, in all its delicacy and diversity, for future millennia and beyond. Those who claim to find answers to such complex dilemmas in the sagas of olden days only trivialize the awesome magnitude of the task.

    David Brin – Afterword to “Earth”

  7. 557
    AK says:

    Re: 539

    Edward Mazria Says:
    13 November 2007 at 12:17 AM

    re 519. 92 square miles of solar thermal electric generation would power todays US electrical needs. See: http://www.ausra.com/. They claim 3% of the land area of Morocco would supply the electrical energy needs of Europe. Not sure if this includes transmission losses. They are projecting they can deliver electricity (with storage) at competitive prices as they ramp up US production.

    Actually, that’s a square 92 miles on a side: 8464 square miles.

  8. 558
    Ray Ladbury says:

    AK says “First, economies of scale will lower the price of launch to orbit by several orders of magnitude.”
    And it will do this exactly…how? You are facing the same problem Bill Gates did with Teledesic, and the problem of launch costs was one thing that sunk that project.”

    AK goes on to say:
    “Second, the entire launch and setup cost doesn’t create a system of power satellites, it creates a system of factories to make power satellites, using power and mass already away from earth. Once that factory system is built, the actual mass of power satellites will be many orders of magnitude greater than what was launched into orbit.”
    OK, you’re going to have to help me out here. Where does the mass of the satellites come from if you don’t launch it? Are you proposing to snag meteors as they whiz by? Are you going to set up your infrastructure on the moon? Salvage space junk? Don’t know if you observed this, but space is really pretty empty. Manufacturing in space is also problematic. And again, radiation will limit the lifetime of any factory just as it will your solar arrays. The general rule of economics in space will be: If you make it in space, use it in space, because it doesn’t make sense to overcome the gravity well just to send it back to Earth.

  9. 559
    SecularAnimist says:

    James wrote: “So it’s the first of the type. There are going to be problems building the first one of anything [...] The important point is that we know they can be built, and will work, unlike most of the proposed alternatives.”

    Since, as you say, the French-designed EPR reactor at Olkiluoto-3 is “the first of the type”, we don’t in fact “know” that it can be built — in anything like the timeframe, at anything like the cost, with anything like the safety standards (which have already been “relaxed” for this reactor) originally proposed. We may find out that it will take much longer, and be a lot more expensive, and have a lot more quality and safety problems than originally expected. And we don’t in fact “know” that it “will work” — as cost-effectively, safely and reliably as originally expected. It may have lots of unexpected problems over time.

    What we do in fact “know” about earlier reactor designs is that they typically take longer than expected to build, cost more to construct, and have a lot of problems, including frequent, extended and costly periods of downtime due to safety issues. That’s with “proven” nuclear technology. A big part of the nuclear expansion argument is that the unproven “new generation” of plants will be built faster and cheaper and will be safer. The Olkiluoto-3 reactor suggests that these hopes may not be met.

    And we most certainly do know that “most of the proposed alternatives” from large-scale wind turbine “farms” and concentrating solar collectors, to distributed small-scale rooftop photovoltaics, and by far the most important, conservation and efficiency, do work, and work just fine.

  10. 560
    Rod B says:

    re 537 (Dave): “…I imagine the Algerians must have already thought of that (see #530), and must believe they have an answer to it….”

    That’t true, but then they are not shipping gigawatts all over Asia and Europe.

  11. 561
    Dave Rado says:

    Re. #542, Joe Duck, more han half of the deaths from the European heatwave are thought to be atrributable to global warming, and if you consider more than half “trivial”, we use different dictionaries. More importantly, you are missing the point, yet again, that 2003 in isolation isn’t the issue, the issue is that the IPCC projections indicate that by 2100, 2003′s summer will be considered unusually cold, that most European summers will be warmer than 2003 was. The point about 2003 is what it portends rather than the absolute number of people who died that year. This point has been made to you over and over again and it seems to go in one ear and out the other, which is why you keep being accused of trolling. Having to make the same points to you over and over again is extremely frustrating, so please stop this troll-like behaviour.

    In addition, as has also been pointed out to you over and over again, the figures Lomborg quoted were misleading in several respects, and you have failed to address any of those points. For example, that it is not the absolute number of people who die in summer vs. winter that is the issue, but how many additional deaths annually are expected as the world warms – and far more additional deaths are expected annually as a result of heat than of cold as the world warms (see IPCC).

    In the case of Lake Chad and Katrina the AGW contribution is unquantifiable but the concensus is that is is unlikely to be trivial (increases in SSTs undoubtedly do increase mean hurricane intensity, for example); but more importantly, you are again completely missing the point, a point that has been made to you over and over again but which seems to have fallen on deaf ears, that it what they portend for the future that is the issue. The IPCC projections indicate that drying out of major lakes like Chad, and severe droughts in general, will become far more frequent by 2100, and will lead to the displacement of hundreds of millions of people; and similarly that highly destructive extreme weather events like Katrina wil also become much more frequent by 2100 (the number of hurricanes is not expected to increase but they are expected to become far more destructive on average). That’s the issue – as has been pointed out to you over and over again.

    Also, when it comes to extreme weather events, as has also been pointed out to you over and over again but this also seems to have fallen on deaf ears, it is not the proportion of the total contribution that is due to AGW that matters, but whether the AGW contribution was sufficient to lead to it being highly destructive. For example, a recent tidal storm surge in the UK didn’t cause any damage at all because it was 22cm lower than had been expected. Had it been only 22cm higher, it would have breached the flood barriers and caused billions of pounds-worth of damage. It is expected that as a result of AGW, tidal storm surges in the UK will become more frequent and more extreme during the coming century; and furthermore, only a 22cm rise in sea level (expected by 2050 or earlier) would mean that a surge like the one we recently experienced would have breached the flood barriers.So a relatively tiny contribution to the total effective storm surge size by AGW would have been enough to make the difference between no damage at all and billions of pounds worth of damage. Similarly with Katrina, a relatively tiny contribution by AGW might have been enough to make the difference between breaching and not breaching the levies.

    If you bring up these issues again without addressing the above points meaningfully, then you are a troll.

  12. 562
    Dave Rado says:

    Re. my previous post, when I wrote:

    far more additional deaths are expected annually as a result of heat than of cold as the world warms

    I meant, of course, to say that the number of additional deaths that are expected annually as a result of heat are expected to greatly outweigh the reduction in deaths resulting from cold. Sorry about that.

  13. 563
    Jim Galasyn says:

    Re Matt’s remarkable claim that species driven to the brink of extinction commonly experience a spontaneous population rebound, without changes in the environmental conditions which are driving them extinct:

    Consider the following graphs from links I posted upthread. They show recent population data for several marine species. The decay curves exponentially approach zero. The decay rates have different time constants, illustrating the correctness of Wilson’s phrase, “immediate or early extinction” — see the curves for sea otter decline (fast) and fur seal decline (slower) in the first graph.

    Sequential collapse of marine mammals in the North Pacific Ocean and southern Bering Sea [1]

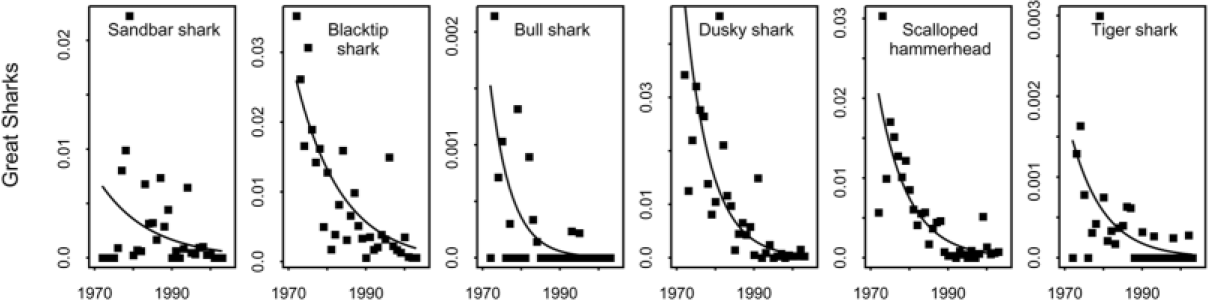

    N. Carolina great shark population collapse [2]

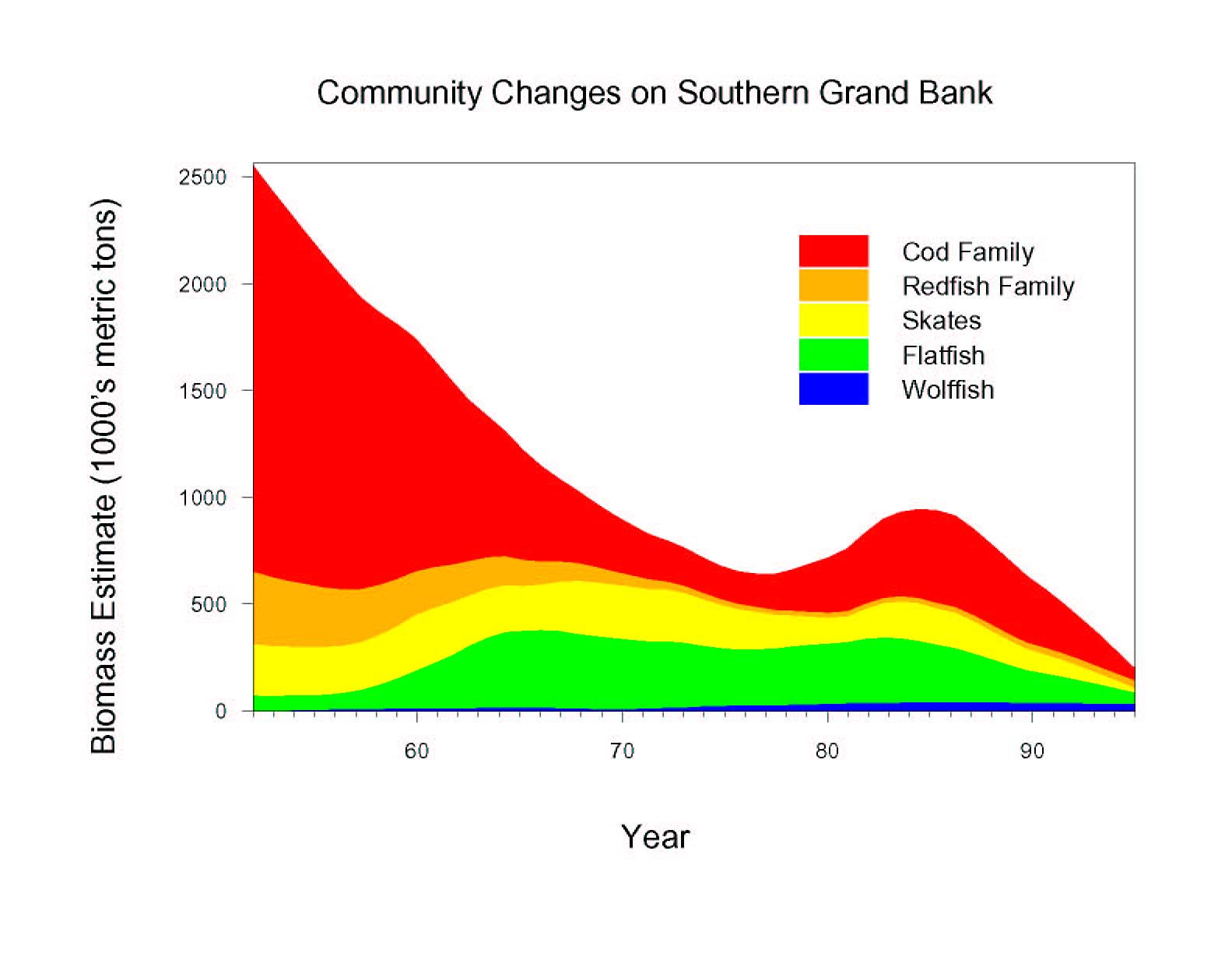

    Community Changes on the Southern Grand Bank [3]
