Roger Pielke Sr. has raised very strong allegations against RealClimate in a recent blog post<\/a>. Since they come from a scientific colleague, we consider it worthwhile responding directly.<\/p>\n

The statement Pielke considers \u201cmisinformation\u201d is a single sentence from a recent posting<\/a>: <\/p>\n

Some aspects of climate change are progressing faster than was expected a few years ago – such as rising sea levels, the increase of heat stored in the ocean and the shrinking Arctic sea ice.<\/p><\/blockquote>\n

First of all, we are surprised that Pielke levelled such strong allegations against RealClimate, since the statement above merely summarises some key findings of the Synthesis Report of the Copenhagen Climate Congress<\/a>, which we discussed last month<\/a>. This is a peer-reviewed document authored by 12 leading scientists and \u201cbased on the 16 plenary talks given at the Congress as well as input of over 80 chairs and co-chairs of the 58 parallel sessions held at the Congress.\u201d If Pielke disagrees with the findings of these scientists, you’d have thought he’d take it up with them rather than aiming shrill accusations at us. But in any case let us look at the three items of alleged misinformation:<\/p>\n

A Chinese translation can be found here<\/a>.<\/lang_zh>
\n<\/p>\n

1. Sea level.<\/strong> The Synthesis Report shows the graph below and concludes: <\/p>\n

Since 2007, reports comparing the IPCC projections of 1990 with observations show that some climate indicators are changing near the upper end of the range indicated by the projections or, as in the case of sea level rise (Figure 1), at even greater rates than indicated by IPCC projections.<\/p><\/blockquote>\n

sea level graph<\/a><\/p>\n

This graph is an update of Rahmstorf et al., Science 2007<\/a>, with data through to the end of 2008. (Note the comparison is with IPCC TAR projections, but since AR4 projections are within 10% of the TAR models this makes little difference.)<\/p>\n

Pielke claims this is \u201cNOT TRUE<\/strong>\u201d (capitals and bold font are his), stating “sea level has actually flattened since 2006\u201d and pointing to this graph<\/a>. This graph shows a sea level trend over the full satellite period (starting 1993) of 3.2 +\/- 0.4 mm\/year and is very similar to an independent French analysis of those very same satellite data shown in the Synthesis Report (blue lines above). The best estimate of the IPCC models for the same time period is 1.9 mm\/year (coloured dashed lines in the middle of the grey uncertainty range). Hence the conclusion of the Synthesis Report is entirely correct.<\/p>\n

The \u201cflattening of sea level since 2006\u201d that Pielke refers to is beside the point and deceptive for several reasons (note too that Anthony Watts has extended this even further<\/a> to declare that sea level from 2006 to present is actually “flat”!). First of all, trends over such a short sub-interval of a few years vary greatly due to short-term natural variations, and one could get any result one likes by cherry-picking a suitable interval (as Pielke and Lomborg<\/a> both have). The absurdity of this approach is see by picking an even more recent trend, say starting in June 2007, which gives 5.3+\/-2.2 mm\/yr! Secondly, this short-term trend (1.6 +\/- 0.9 mm\/yr) is not even robust across data sets \u2013 the French analysis shown above has a trend since the beginning of 2006 of 2.9 mm\/year, very similar to the long-term trend. Third, the image Pielke links to shows the data without the inverted barometer correction \u2013 the brief marked peak in late 2005, which makes the visual trend (always a poor choice of statistical methodology) almost flat since then, disappears when this effect is accounted for<\/a>. This means the 2005 peak was simply due to air pressure fluctuations and has nothing to do with climatic ocean volume changes. The trend from 2006 in the data with the inverse barometer adjustment is 2.1 +\/- 0.8 mm\/yr. <\/p>\n

2. Ocean heat content.<\/strong> The Synthesis Report states: <\/p>\n

Current estimates indicate that ocean warming is about 50% greater than had been previously reported by the IPCC.<\/p><\/blockquote>\n

This is a conclusion of a revised analysis of ocean heat content data by Domingues et al., Nature<\/em> 2008, and it applies to the period 1961-2003 also analysed in the IPCC report. Pielke claims this is \u201cNOT TRUE<\/strong>\u201d and counters with the claim: \u201cThere has been no statistically significant warming of the upper ocean since 2003.\u201d But again this is not relevant to the point the Synthesis Report actually makes and again, Pielke is referring to a 5-year period which is too short to obtain statistically robust trends in the presence of short-term variability and data accuracy problems (the interannual variability for instance differs greatly between different ocean heat content data sets):<\/p>\n

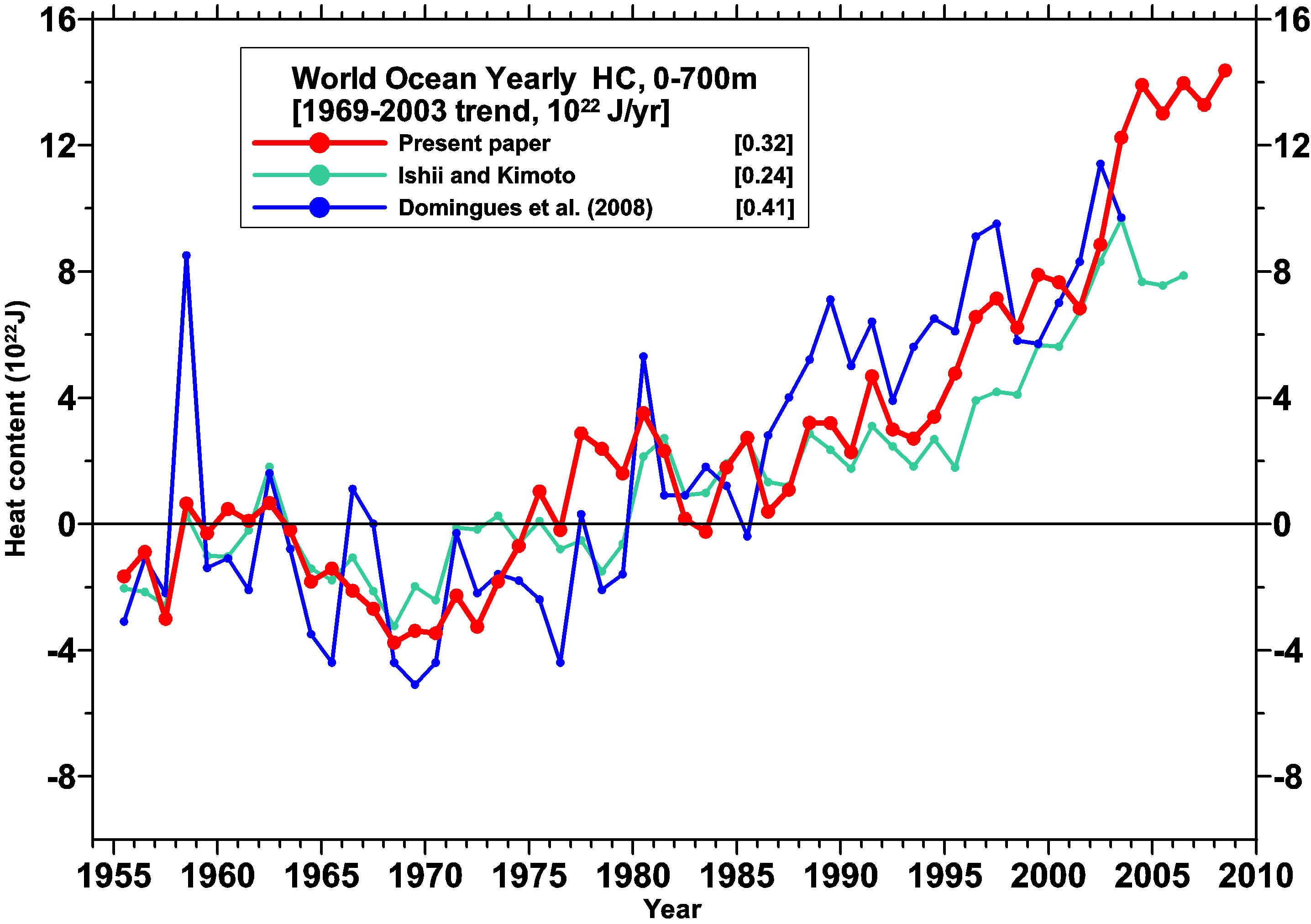

Levitus et al comparison of Ocean heat content data<\/a><\/p>\n

For good reasons, the Synthesis Report discusses a time span that is sufficiently long to allow meaningful comparisons. But in any case, the trend in from 2003 to 2008 in the Levitus data (the Domingues et al data does not extend past 2003), is still positive but with an uncertainty (both in the trend calculation and systematically) that makes it impossible to state whether there has been a significant change.<\/p>\n

3. Arctic Sea Ice.<\/strong> The Synthesis Report states:<\/p>\n

One of the most dramatic developments since the last IPCC Report is the rapid reduction in the area of Arctic sea ice in summer. In 2007, the minimum area covered decreased by about 2 million square kilometres as compared to previous years. In 2008, the decrease was almost as dramatic.<\/p><\/blockquote>\n

This decline is clearly faster than expected by models, as the following graph indicates.<\/p>\n

sea ice extent time series<\/a> <\/p>\n

Pielke\u2019s claim that this is \u201cNOT TRUE<\/strong>\u201d is merely based on the statement that \u201csince 2008, the anomalies have actually decreased.\u201d<\/p>\n

Yes, same thing again: Pielke\u2019s argument is beside the point, since the Synthesis Report is explicitly talking about the summer sea ice minimum reached each September in the Arctic, and we don\u2019t even know yet what its value will be for 2009. And Pielke is again referring to a time span (\u201csince 2008<\/em>\u201d!) that is far too short to have much to do with climatic trends.<\/p>\n

We thus have to conclude that there are no grounds whatsoever for Pielke\u2019s wild allegations against us and implicitly the Synthesis Report authors. The final sentence of his post ironically speaks for itself:<\/p>\n

Media and policymakers who blindly accept these claims are either naive or are deliberately slanting the science to promote their particular advocacy position.<\/strong><\/p><\/blockquote>\n

Indeed.<\/p>\n\n<\/div> ","protected":false},"excerpt":{"rendered":"
