What is happening to sea levels? That was perhaps the most controversial issue in the 4th IPCC report of 2007. The new report of the Intergovernmental Panel on Climate Change is out now, and here I will discuss what IPCC has to say about sea-level rise (as I did here after the 4th report).
Let us jump straight in with the following graph which nicely sums up the key findings about past and future sea-level rise: (1) global sea level is rising, (2) this rise has accelerated since pre-industrial times and (3) it will accelerate further in this century. The projections for the future are much higher and more credible than those in the 4th report but possibly still a bit conservative, as we will discuss in more detail below. For high emissions IPCC now predicts a global rise by 52-98 cm by the year 2100, which would threaten the survival of coastal cities and entire island nations. But even with aggressive emissions reductions, a rise by 28-61 cm is predicted. Even under this highly optimistic scenario we might see over half a meter of sea-level rise, with serious impacts on many coastal areas, including coastal erosion and a greatly increased risk of flooding.
Fig. 1. Past and future sea-level rise. For the past, proxy data are shown in light purple and tide gauge data in blue. For the future, the IPCC projections for very high emissions (red, RCP8.5 scenario) and very low emissions (blue, RCP2.6 scenario) are shown. Source: IPCC AR5 Fig. 13.27.
In addition to the global rise IPCC extensively discusses regional differences, as shown for one scenario below. For reasons of brevity I will not discuss these further in this post.
Fig. 2. Map of sea-level changes up to the period 2081-2100 for the RCP4.5 scenario (which one could call late mitigation, with emissions starting to fall globally after 2040 AD). Top panel shows the model mean with 50 cm global rise, the following panels show the low and high end of the uncertainty range for this scenario. Note that even under this moderate climate scenario, the northern US east coast is risking a rise close to a meter, drastically increasing the storm surge hazard to cities like New York. Source: IPCC AR5 Fig. 13.19.
I recommend to everyone with a deeper interest in sea level to read the sea level chapter of the new IPCC report (Chapter 13) – it is the result of a great effort by a group of leading experts and an excellent starting point to understanding the key issues involved. It will be a standard reference for years to come.
Past sea-level rise
Understanding of past sea-level changes has greatly improved since the 4th IPCC report. The IPCC writes:
Proxy and instrumental sea level data indicate a transition in the late 19th to the early 20th century from relatively low mean rates of rise over the previous two millennia to higher rates of rise (high confidence). It is likely that the rate of global mean sea level rise has continued to increase since the early 20th century.
Adding together the observed individual components of sea level rise (thermal expansion of the ocean water, loss of continental ice from ice sheets and mountain glaciers, terrestrial water storage) now is in reasonable agreement with the observed total sea-level rise.
Models are also now able to reproduce global sea-level rise from 1900 AD better than in the 4th report, but still with a tendency to underestimation. The following IPCC graph shows a comparison of observed sea level rise (coloured lines) to modelled rise (black).
Fig. 3. Modelled versus observed global sea-level rise. (a) Sea level relative to 1900 AD and (b) its rate of rise. Source: IPCC AR5 Fig. 13.7.
Taken at face value the models (solid black) still underestimate past rise. To get to the dashed black line, which shows only a small underestimation, several adjustments are needed.
(1) The mountain glacier model is driven by observed rather than modelled climate, so that two different climate histories go into producing the dashed black line: observed climate for glacier melt and modelled climate for ocean thermal expansion.
(2) A steady ongoing ice loss from ice sheets is added in – this has nothing to do with modern warming but is a slow response to earlier climate changes. It is a plausible but highly uncertain contribution – the IPCC calls the value chosen “illustrative” because the true contribution is not known.
(3) The model results are adjusted for having been spun up without volcanic forcing (hard to believe that this is still an issue – six years earlier we already supplied our model results spun up with volcanic forcing to the AR4). Again this is a plausible upward correction but of uncertain magnitude, since the climate response to volcanic eruptions is model-dependent.
The dotted black line after 1990 makes a further adjustment, namely adding in the observed ice sheet loss which as such is not predicted by models. The ice sheet response remains a not yet well-understood part of the sea-level problem, and the IPCC has only “medium confidence” in the current ice sheet models.
One statement that I do not find convincing is the IPCC’s claim that “it is likely that similarly high rates [as during the past two decades] occurred between 1920 and 1950.” I think this claim is not well supported by the evidence. In fact, a statement like “it is likely that recent high rates of SLR are unprecedented since instrumental measurements began” would be more justified.
The lower panel of Fig. 3 (which shows the rates of SLR) shows that based on the Church & White sea-level record, the modern rate measured by satellite altimeter is unprecedented – even the uncertainty ranges of the satellite data and those of the Church & White rate between 1920 and 1950 do not overlap. The modern rate is also unprecedented for the Ray and Douglas data although there is some overlap of the uncertainty ranges (if you consider both ranges). There is a third data set (not shown in the above graph) by Wenzel and Schröter (2010) for which this is also true. The only outlier set which shows high early rates of SLR is the Jevrejeva et al. (2008) data – and this uses a bizarre weighting scheme, as we have discussed here at Realclimate. For example, the Northern Hemisphere ocean is weighted more strongly than the Southern Hemisphere ocean, although the latter has a much greater surface area. With such a weighting movements of water within the ocean, which cannot change global-mean sea level, erroneously look like global sea level changes. As we have shown in Rahmstorf et al. (2012), much or most of the decadal variations in the rate of sea-level rise in tide gauge data are probably not real changes at all, but simply an artefact of inadequate spatial sampling of the tide gauges. (This sampling problem has now been overcome with the advent of satellite data from 1993 onwards.) But even if we had no good reason to distrust decadal variations in the Jevrejeva data and treated all data sets the same, three out of four global tide gauge compilations show recent rates of rise that are unprecedented – enough for a “likely” statement in IPCC terms.
Future sea-level rise
For an unmitigated future rise in emissions (RCP8.5), IPCC now expects between a half metre and a metre of sea-level rise by the end of this century. The best estimate here is 74 cm.
On the low end, the range for the RCP2.6 scenario is 28-61 cm rise by 2100, with a best estimate of 44 cm. Now that is very remarkable, given that this is a scenario with drastic emissions reductions starting in a few years from now, with the world reaching zero emissions by 2070 and after that succeeding in active carbon dioxide removal from the atmosphere. Even so, the expected sea-level rise will be almost three times as large as that experienced over the 20th Century (17 cm). This reflects the large inertia in the sea-level response – it is very difficult to make sea-level rise slow down again once it has been initiated. This inertia is also the reason for the relatively small difference in sea-level rise by 2100 between the highest and lowest emissions scenario (the ranges even overlap) – the major difference will only be seen in the 22nd century.
There has been some confusion about those numbers: some media incorrectly reported a range of only 26-82 cm by 2100, instead of the correct 28-98 cm across all scenarios. I have to say that half of the blame here lies with the IPCC communication strategy. The SPM contains a table with those numbers – but they are not the rise up to 2100, but the rise up to the mean over 2081-2100, from a baseline of the mean over 1985-2005. It is self-evident that this is too clumsy to put in a newspaper or TV report so journalists will say “up to 2100”. So in my view, IPCC would have done better to present the numbers up to 2100 in the table (as we do below), so that after all its efforts to get the numbers right, 16 cm are not suddenly lost in the reporting.
Table 1: Global sea-level rise in cm by the year 2100 as projected by the IPCC AR5. The values are relative to the mean over 1986-2005, so subtract about a centimeter to get numbers relative to the year 2000.
And then of course there are folks like the professional climate change down-player Björn Lomborg, who in an international newspaper commentary wrote that IPCC gives “a total estimate of 40-62 cm by century’s end” – and also fails to mention that the lower part of this range requires the kind of strong emissions reductions that Lomborg is so viciously fighting.
The breakdown into individual components for an intermediate scenario of about half a meter of rise is shown in the following graph.

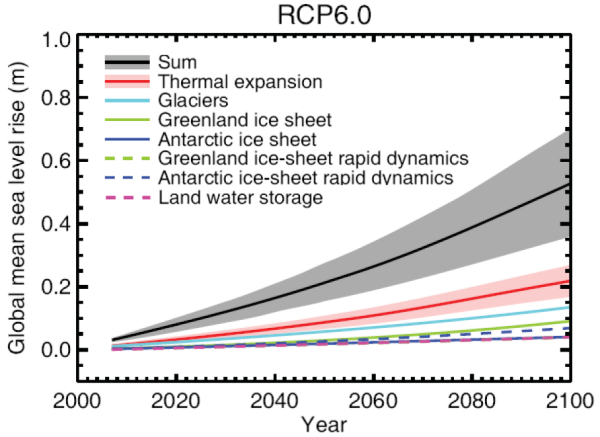

Fig. 4. Global sea-level projection of IPCC for the RCP6.0 scenario, for the total rise and the individual contributions.
Higher projections than in the past
To those who remember the much-discussed sea-level range of 18-59 cm from the 4th IPCC report, it is clear that the new numbers are far higher, both at the low and the high end. But how much higher they are is not straightforward to compare, given that IPCC now uses different time intervals and different emissions scenarios. But a direct comparison is made possible by table 13.6 of the report, which allows a comparison of old and new projections for the same emissions scenario (the moderate A1B scenario) over the time interval 1990-2100(*). Here the numbers:
AR4: 37 cm (this is the standard case that belongs to the 18-59 cm range).
AR4+suisd: 43 cm (this is the case with “scaled-up ice sheet discharge” – a questionable calculation that was never validated, emphasised or widely reported).
AR5: 60 cm.
We see that the new estimate is about 60% higher than the old standard estimate, and also a lot higher than the AR4 attempt at including rapid ice sheet discharge.
The low estimates of the 4th report were already at the time considered too low by many experts – there were many indications of that (which we discussed back then), including the fact that the process models used by IPCC greatly underestimated the past observed sea-level rise. It was clear that those process models were not mature, and that was the reason for the development of an alternative, semi-empirical approach to estimating future sea-level rise. The semi-empirical models invariably gave much higher future projections, since they were calibrated with the observed past rise.
However, the higher projections of the new IPCC report do not result from including semi-empirical models. Remarkably, they have been obtained by the process models preferred by IPCC. Thus IPCC now confirms with its own methods that the projections of the 4th report were too low, which was my main concern at the time and the motivation for publishing my paper in Science in 2007. With this new generation of process models, the discrepancy to the semi-empirical models has narrowed considerably, but a difference still remains.
Should the semi-empirical models have been included in the uncertainty range of the IPCC projections? A number of colleagues that I have spoken to think so, and at least one has said so in public. The IPCC argues that there is “no consensus” on the semi-empirical models – true, but is this a reason to exclude or include them in the overall uncertainty that we have in the scientific community? I think there is likewise no consensus on the studies that have recently argued for a lower climate sensitivity, yet the IPCC has widened the uncertainty range to encompass them. The New York Times concludes from this that the IPCC is “bending over backward to be scientifically conservative”. And indeed one wonders whether the semi-empirical models would have been also excluded had they resulted in lower estimates of sea-level rise, or whether we see “erring on the side of the least drama” at work here.
What about the upper limit?
Coastal protection professionals require a plausible upper limit for planning purposes, since coastal infrastructure needs to survive also in the worst case situation. A dike that is only “likely” to be good enough is not the kind of safety level that coastal engineers want to provide; they want to be pretty damn certain that a dike will not break. Rightly so.
The range up to 98 cm is the IPCC’s “likely” range, i.e. the risk of exceeding 98 cm is considered to be 17%, and IPCC adds in the SPM that “several tenths of a meter of sea level rise during the 21st century” could be added to this if a collapse of marine-based sectors of the Antarctic ice sheet is initiated. It is thus clear that a meter is not the upper limit.
It is one of the fundamental philosophical problems with IPCC (causing much debate already in conjunction with the 4th report) that it refuses to provide an upper limit for sea-level rise, unlike other assessments (e.g. the sea-level rise scenarios of NOAA (which we discussed here) or the guidelines of the US Army Corps of Engineers). This would be an important part of assessing the risk of climate change, which is the IPCC’s role (**). Anders Levermann (one of the lead authors of the IPCC sea level chapter) describes it thus:
In the latest assessment report of the IPCC we did not provide such an upper limit, but we allow the creative reader to construct it. The likely range of sea level rise in 2100 for the highest climate change scenario is 52 to 98 centimeters (20 to 38 inches.). However, the report notes that should sectors of the marine-based ice sheets of Antarctic collapse, sea level could rise by an additional several tenths of a meter during the 21st century. Thus, looking at the upper value of the likely range, you end up with an estimate for the upper limit between 1.2 meters and, say, 1.5 meters. That is the upper limit of global mean sea-level that coastal protection might need for the coming century.
For the past six years since publication of the AR4, the UN global climate negotiations were conducted on the basis that even without serious mitigation policies global sea-level would rise only between 18 and 59 cm, with perhaps 10 or 20 cm more due to ice dynamics. Now they are being told that the best estimate for unmitigated emissions is 74 cm, and even with the most stringent mitigation efforts, sea level rise could exceed 60 cm by the end of century. It is basically too late to implement measures that would very likely prevent half a meter rise in sea level. Early mitigation is the key to avoiding higher sea level rise, given the slow response time of sea level (Schaeffer et al. 2012). This is where the “conservative” estimates of IPCC, seen by some as a virtue, have lulled policy makers into a false sense of security, with the price having to be paid later by those living in vulnerable coastal areas.
Is the IPCC AR5 now the final word on process-based sea-level modelling? I don’t think so. I see several reasons that suggest that process models are still not fully mature, and that in future they might continue to evolve towards higher sea-level projections.
1. Although with some good will one can say the process models are now consistent with the past observed sea-level rise (the error margins overlap), the process models remain somewhat at the low end in comparison to observational data.
2. Efforts to model sea-level changes in Earth history tend to show an underestimation of past sea-level changes. E.g., the sea-level high stand in the Pliocene is not captured by current ice sheet models. Evidence shows that even the East Antarctic Ice Sheet – which is very stable in models – lost significant amounts of ice in the Pliocene.
3. Some of the most recent ice sheet modelling efforts that I have seen discussed at conferences – the kind of results that came too late for inclusion in the IPCC report – point to the possibility of larger sea-level rise in future. We should keep an eye out for the upcoming scientific papers on this.
4. Greenland might melt faster than current models capture, due to the “dark snow” effect. Jason Box, a glaciologist who studies this issue, has said:
There was controversy after AR4 that sea level rise estimates were too low. Now, we have the same problem for AR5 [that they are still too low].
Thus, I would not be surprised if the process-based models will have closed in further on the semi-empirical models by the time the next IPCC report gets published. But whether this is true or not: in any case sea-level rise is going to be a very serious problem for the future, made worse by every ton of CO2 that we emit. And it is not going to stop in the year 2100 either. By 2300, for unmitigated emissions IPCC projects between 1 and more than 3 meters of rise.
I’m usually suspicious of articles that promise to look “behind the scenes”, but this one by Paul Voosen is not sensationalist but gives a realistic and matter-of-fact insight into the inner workings of the IPCC, for the sea-level chapter. Recommended reading!
And the IPCC sea-level authors have a good letter to Science about their findings.
(*) Note: For the AR5 models table 13.6 gives 58 cm from 1996; we made that 60 cm from 1990.
(**) The Principles Governing IPCC Work explicitly state that its role is to “assess…risk”, albeit phrased in a rather convoluted sentence:
The role of the IPCC is to assess on a comprehensive, objective, open and transparent basis the scientific, technical and socio-economic information relevant to understanding the scientific basis of risk of human-induced climate change, its potential impacts and options for adaptation and mitigation.
- J.A. Church, and N.J. White, "Sea-Level Rise from the Late 19th to the Early 21st Century", Surveys in Geophysics, vol. 32, pp. 585-602, 2011. http://dx.doi.org/10.1007/s10712-011-9119-1
- R.D. Ray, and B.C. Douglas, "Experiments in reconstructing twentieth-century sea levels", Progress in Oceanography, vol. 91, pp. 496-515, 2011. http://dx.doi.org/10.1016/j.pocean.2011.07.021
- M. Wenzel, and J. Schröter, "Reconstruction of regional mean sea level anomalies from tide gauges using neural networks", Journal of Geophysical Research, vol. 115, 2010. http://dx.doi.org/10.1029/2009JC005630
- S. Jevrejeva, J.C. Moore, A. Grinsted, and P.L. Woodworth, "Recent global sea level acceleration started over 200 years ago?", Geophysical Research Letters, vol. 35, 2008. http://dx.doi.org/10.1029/2008gl033611
- S. Rahmstorf, M. Perrette, and M. Vermeer, "Testing the robustness of semi-empirical sea level projections", Climate Dynamics, vol. 39, pp. 861-875, 2011. http://dx.doi.org/10.1007/s00382-011-1226-7
- S. Rahmstorf, "A Semi-Empirical Approach to Projecting Future Sea-Level Rise", Science, vol. 315, pp. 368-370, 2007. http://dx.doi.org/10.1126/science.1135456
- M. Schaeffer, W. Hare, S. Rahmstorf, and M. Vermeer, "Long-term sea-level rise implied by 1.5 °C and 2 °C warming levels", Nature Climate Change, vol. 2, pp. 867-870, 2012. http://dx.doi.org/10.1038/NCLIMATE1584
